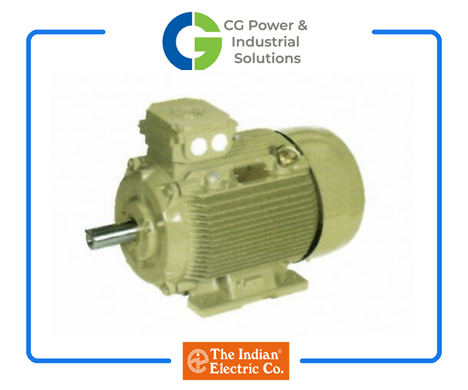

CG Power (Crompton Greaves) Crusher Duty Motors

Description:

We The Indian Electric Company are the authorised Dealer of CG Power (Crompton Greaves) Crusher Duty Motors having range from 0.55 KW to 600 KW & 0.75 HP to 800 HP. This motors are 3 phase with 415 volt & Frequency of 50 Hz. The crusher duty motors available in 1500 RPM, 1000 RPM, 750 RPM & 600 RPM with respect to 4 Pole, 6 Pole & 8 Pole & 10 Pole. Available Frame sizes are from 80 to 450 frame. Mounting options are B3 (Foot Mounting), B5 (Flange Mounting), & B14 (Face Mounting) available with Terminal Box Position at TOP Side, LHS Side & RHS Side. This motors having standard cooling system IC411 and options having with IC410 also. Ball bearings used in Frame 80 - 250 & above Frame 280 – 450 there are Roller bearings used in it. Crusher duty motors are available in insulation class F & temperature rise Class B. This motors are Painted with colour Light Gray (631 IS-5) (other on request). Steel Fan cover is fitted to protect cooling fan. Gel coat on winding overhang from frame 80 to 450. Anti-condensation heaters also available in frame 280 to 450. This motors are Inverter Duty (with derate) Variable Torque: 10:1, Constant Torque: 2:1. Ambient temperature of crusher duty motors are 20 °C to + 50° C.
